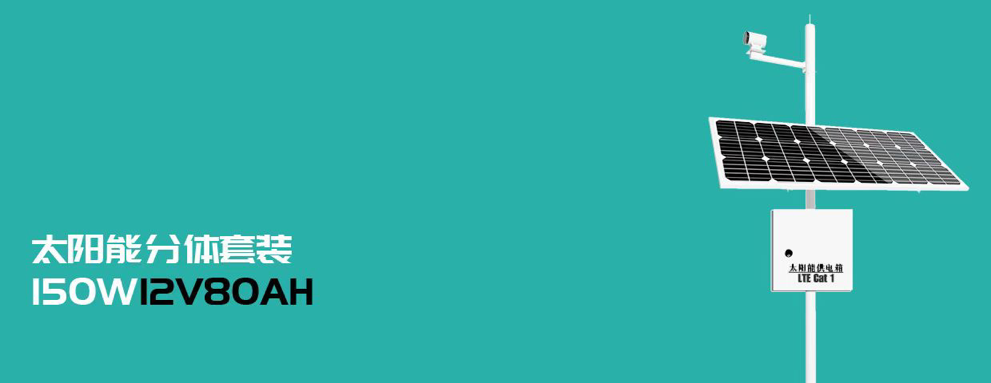

Solar Split Set
Load Name
Average Power
Endurance Time
Installation Location
Product Category
Solar - 150W80AH
Product Model
DLXN - 15080D
Installation Method
Pole Mounting
Warranty Time
3 Years
Category
Product Image
Product Name
Detailed Parameters
Unit
Quantity
Solar
Power
Supply

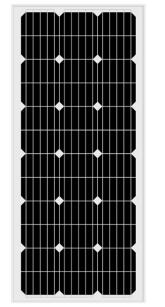

Solar Panel
Type: Monocrystalline Silicon
Piece
1
Peak Power: 150W
Peak Current: 8.3A
Operating Voltage: 18V
Conversion Efficiency: 20%
Dimensions: 1250mm x 670mm x 30mm
Warranty: 10 Years

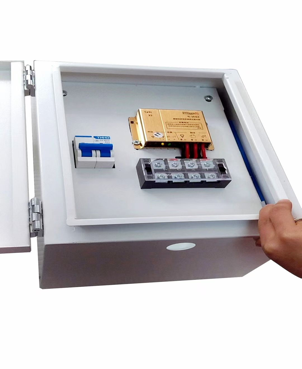

Central Control Integrated Box
Material: Cold-rolled Steel, Breathable/Waterproof/Dustproof/Corrosion-resistant
Dimensions: 260*300*200mm
Battery Capacity: Ternary Lithium Battery 12V80AH
Controller: Intelligent Programmable PWM10A
Load Output: Regulated Output DC12V
Features: One-piece Molding/Modular Installation/Temperature Compensation
Integrated Industrial-grade Controller/Battery/
Photovoltaic Surge Air Switch...
Fixed Bracket
Material: Hot-dip Galvanized
Set
Fixing Method: Pole Mounting
Hoop Specification: 76/90/110/140/160, etc.
Suitable for 150W Single Panel
Other Accessories
Screw Accessory Kit and Other Accessories
```
