DLXN-L-12060D 120W Solar Power Supply System Donglan New Energy Integrated Solar Power Supply Monitoring Environmental Protection Water Conservancy Equipment Power Supply-Laiyuan Changyao New Energy Co., Ltd.

DLXN-L-12060D 120W Solar Power Supply System Donglan New Energy Integrated Solar Power Supply Monitoring Environmental Protection Water Conservancy Equipment Power Supply

Online inquiry

Previous Next

Detailed content Specification parameter Product packaging

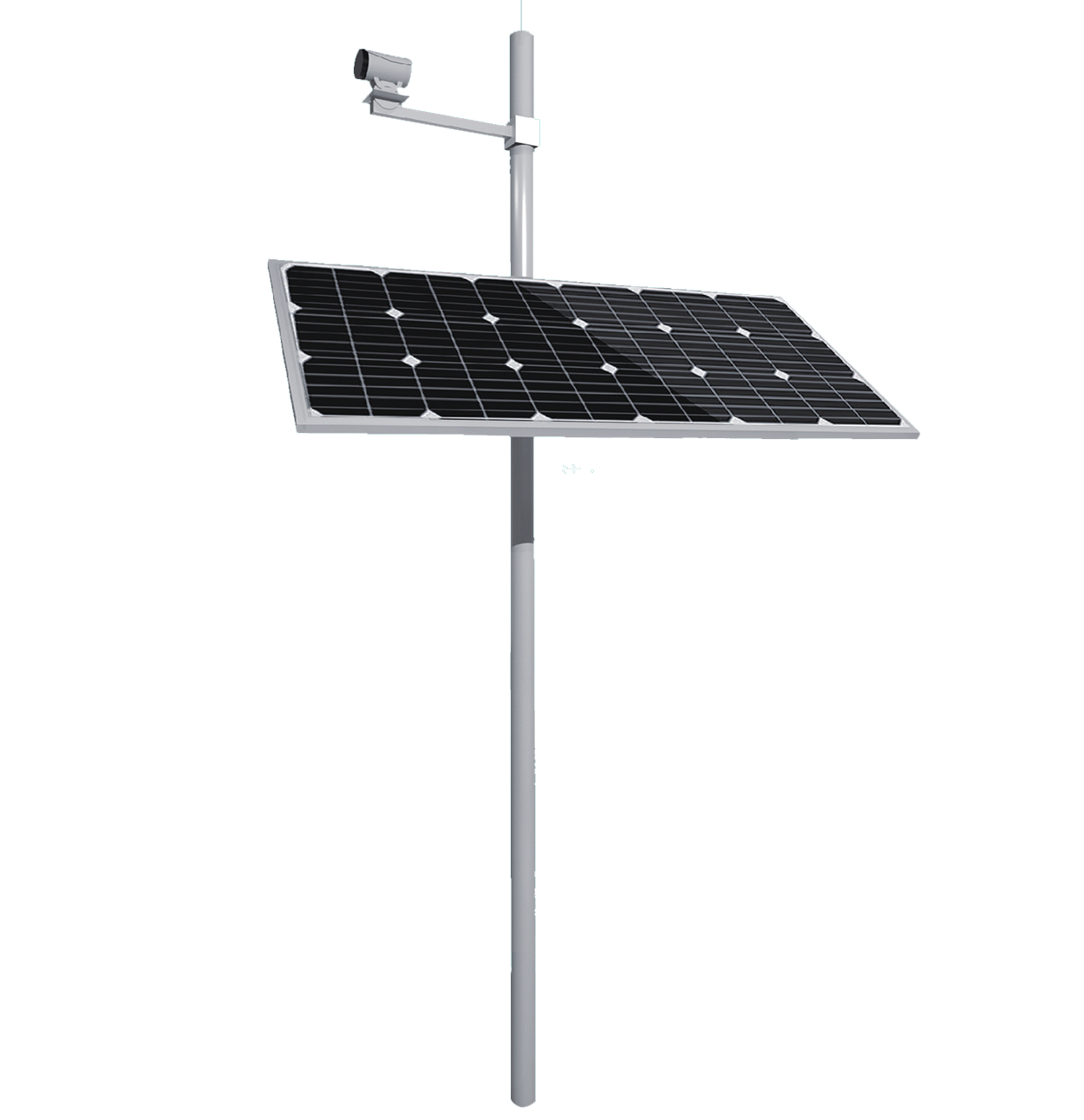

Model: DLXN-L-12060D Solar-powered integrated set

Product Image	Product Name	Detailed Parameters	Unit	Quantity
	Solar Panel	Type: Monocrystalline Silicon	Piece	1
		Peak Power: 120W
		Charging Current: 6A
		Operating Voltage: 18V
		Conversion Efficiency: 20%
		Dimensions: 1000mm x 540mm x 30mm
	Energy Storage and Control Unit	Type: Lithium Battery	Piece	1
		Output Voltage: DC 11.1V
		Battery Capacity: 60AH
		Control Type: PWM 10A	Piece	1
		Maximum Output: 12V 4A
		Protection Function: Overcharge Protection, Over-discharge Protection
		Installation: Integrated
	Fixed Bracket	Material: Hot-dip Galvanized	Set	1
		Fixing Method: Pole Mounting/Wall Mounting
		Hoop Specification: 76/90/110/140, etc.
		Suitable for 60W Single Panel
	Other Accessories	DC Cable/Screw Accessory Kit, etc.	Set	1
	Packing Size	776622174MM
	Weight	13KG
	Applicable Scope Performance Features	Applicable Scope: Hikvision 4G Bullet Camera can run continuously for 6 - 7 days 3-inch 4G PTZ Camera for 4.5 - 5 days Performance Features: Integrated and concealed wiring design, tidy and beautiful wiring, anti-damage Internal integrated system, using military-grade lithium batteries, small size, high capacity density, safe and stable, long service life PWM 10A controller, supporting remote control parameter programming Built-in voltage regulator, fixed output DC 12V voltage, will not burn the camera 76 - 140MM compatible hoop, can be pole-mounted or wall-mounted One-key switch, indicator light display, power display
