Detailed content Specification parameter Product packaging

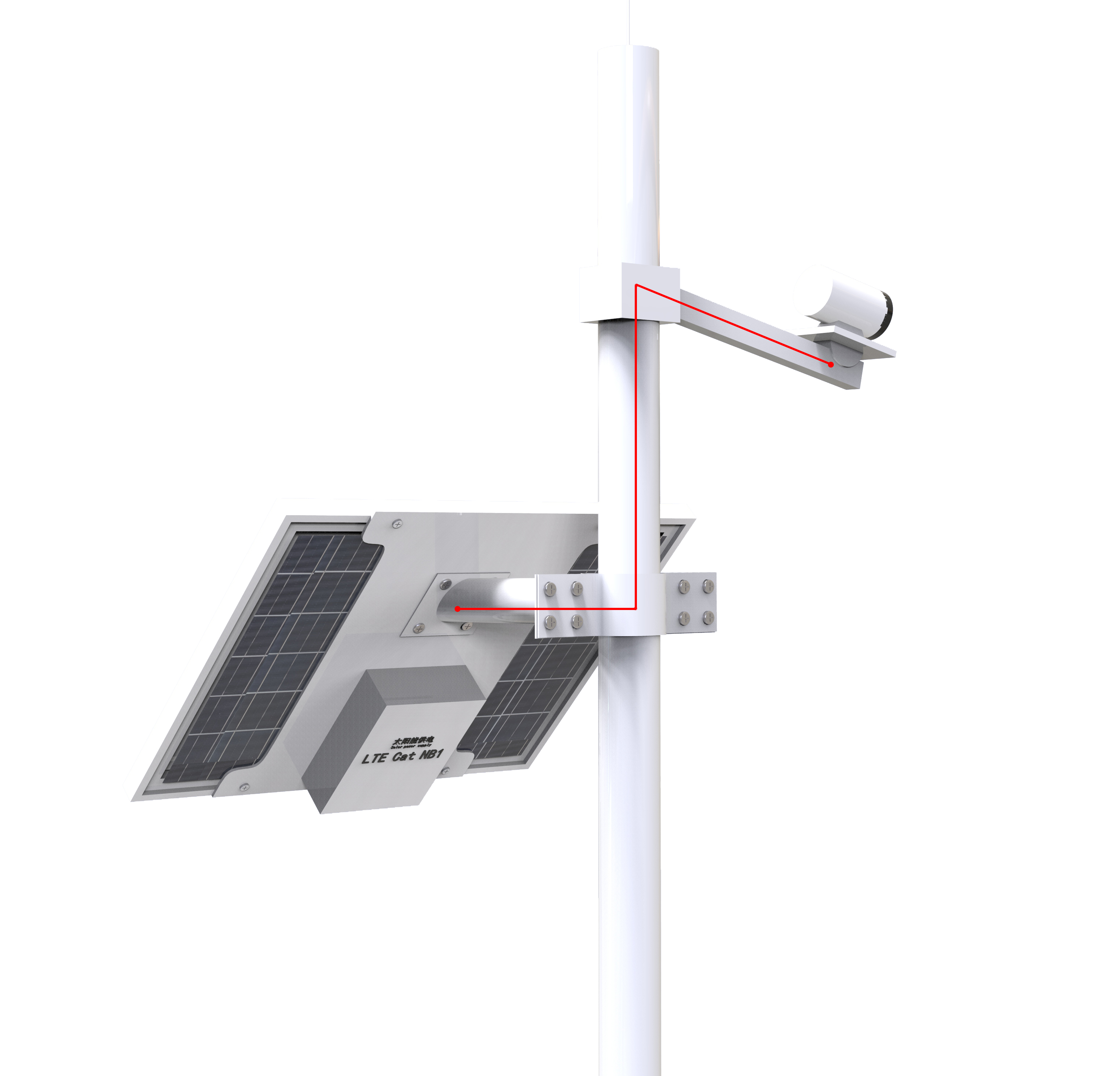

Model: DLXN-L-6030D Solar-powered All-in-one Set

Product Image	Product Name	Detailed Parameters	Unit	Quantity
	Solar Panel	Type: Monocrystalline Silicon	Piece	1
		Peak Power: 60W
		Charging Current: 3.3A
		Operating Voltage: 18V
		Conversion Efficiency: 20%
		Dimensions: 670mm x 540mm x 30mm
	Storage and Control All-in-one Machine	Type: Lithium Battery	Piece	1
		Output Voltage: DC11.1V
		Battery Capacity: 30AH
		Control Type: PMW 10A	Piece	1
		Maximum Output: 3A
		Protection Function: Overcharge Protection, Overdischarge Protection
		Installation: Integrated
	Fixed Bracket	Material: Hot-dip Galvanized	Set	1
		Fixing Method: Pole Mountable/Wall Mountable
		Hoop Specification: 76/90/110/140, etc.
		Suitable for 60W Single Panel
	Other Accessories	DC Cable/Screw Accessory Kit and Other Accessories	Set	1
	Packing Size	776622174MM
	Weight	13KG
	Application Scope Performance Features	Application Scope: Hikvision 4G Bullet Camera can operate continuously for 72 hours Performance Features: Integrated and Concealed Wiring Design, Neat and Beautiful Wiring, Anti-damage Internal Integrated System, Using Military-grade Lithium Battery, Small Size, High Capacity Density, Safe and Stable, Long Service Life PWM 10A Controller, Supports Remote Control Parameter Programming Built-in Voltage Regulator, Fixed Output DC12V Voltage, Does Not Burn Cameras 76-140MM Compatible Hoop, Can Be Pole-mounted or Wall-mounted One-key Switch, Indicator Light Display, Power Display
