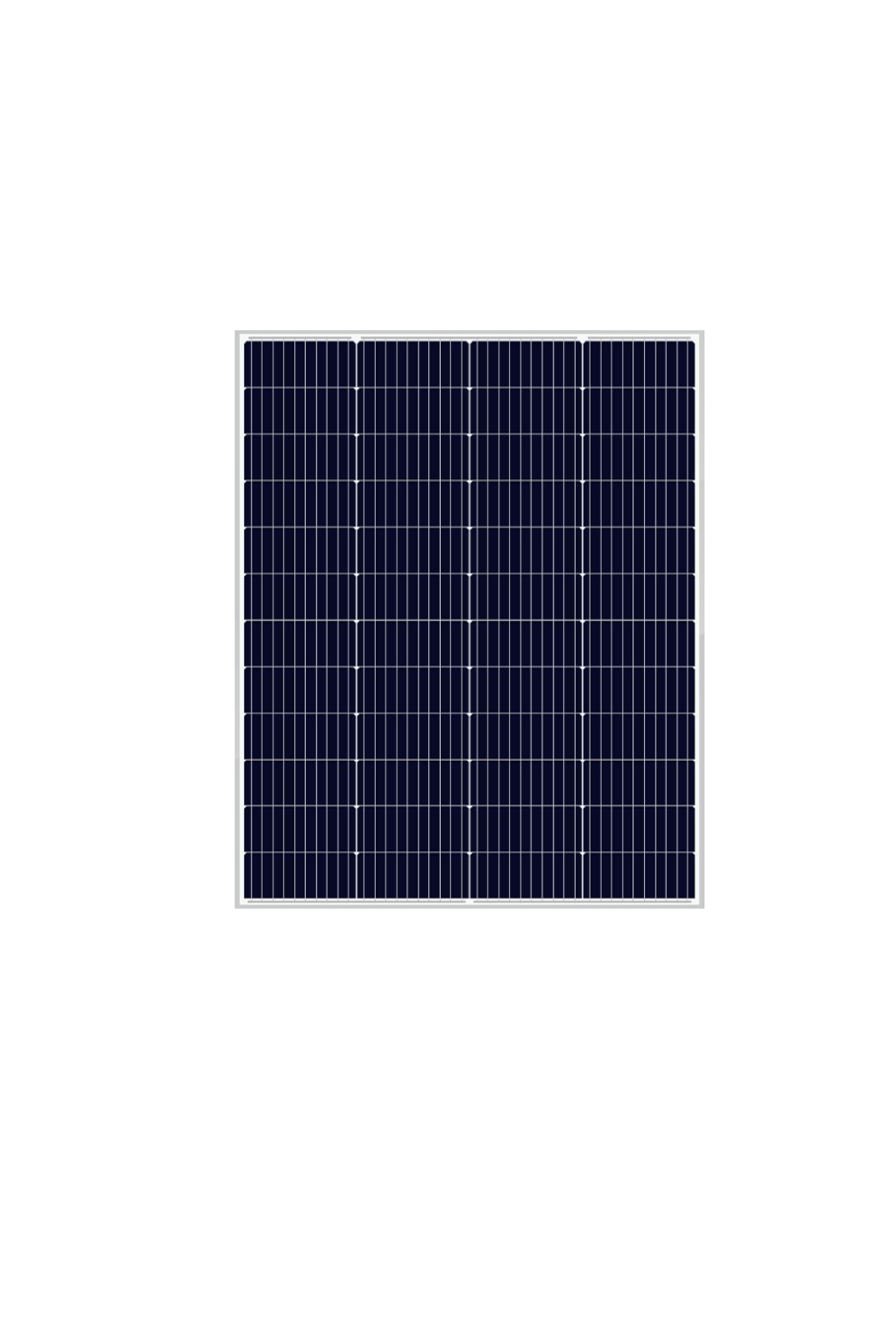

300W 310W 320W solar panel 182 series monocrystalline photovoltaic module monitoring street light application system

Online inquiry

Previous Next

Detailed content Specification parameter Product packaging

Electrical ParametersSTC(Under Standard Test Conditions) DLXN-G12-300-320W
Maximum Power-Pmax(Wp)	300			310	320
Power Tolerance-Pmax(W)	0-+3			0-+3	0-+3
Operating Voltage-Vmpp(V)	36.48			36.67	37.12
Operating Current-Impp(A)	8.22			8.45	8.63
Open Circuit Voltage-Voc(V)	42.24			43.01	43.44
Short Circuit Current-Isc(A)	8.79			8.88	9.02
Module Efficiencynm(%)	19.5			20.1	20.78
Measured values under standard test conditions (Air Mass AM1.5, Irradiance 1000W/㎡, Cell Temperature 25°C) Measurement Tolerance: ±3%
Mechanical Parameters
Cell Type	Mono-crystalline
Number of Cells	64
Module Dimensions	176087530
Weight	15.8KG
Glass	3.2mm Ultra-clear Embossed Tempered Glass
Encapsulation Material	EVA
Backsheet	TPT White
Frame	30mm Aluminum Frame
Junction Box	Protection ClassIP67
Cable	Optional0.5-4mm² Copper Wire
Connector	OptionalMC4, Waterproof Terminal, Wire Clip

Temperature Rating		Limit Parameters
NOCT(Nominal Operating Cell Temperature)	45.3℃		Operating Temperature
