Product

Load Name

Average Power

Endurance

Installation Location

Product Category

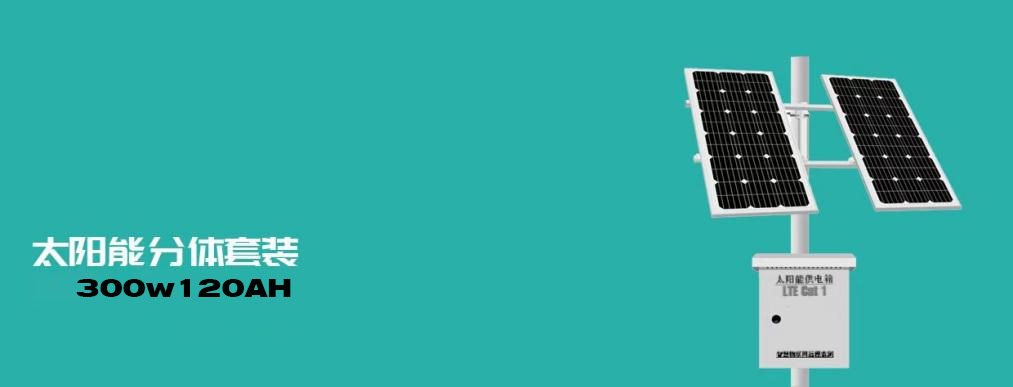

DLXN Solar Power Supply System

PRODUCT MODEL

Installation Method

Holding Pole

Warranty Period

2 Years

Classification

Product Images

Product Name

Details Parameters

Unit

Quantity

Solar Powered

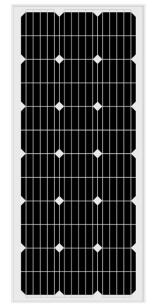

Solar Panels

Type: Monocrystalline Silicon

Piece

2

Peak Power: 150W

Peak Current: 8.34A

Working Voltage: 18V

Conversion Efficiency: 20%

External Dimensions: 1250mm x 670mm x 30mm

Warranty: 10 Years

Storage Battery

Type: Ternary Lithium Battery

Piece

1

Rated Voltage: DC12V

Battery Capacity: 120AH

Features: High Capacity / High Density / Discharge Depth of over 95% / Safe / Durable / Cold Resistant / High Temperature Resistant / Excellent Environmental Adaptability

Integrated Central Control Box

Material: Cold-rolled Steel, Breathable / Waterproof / Dustproof / Corrosion-resistant

Unit

1

Dimensions: 300*260*200mm

Controller: PWM20A

Load Output: Regulated Output DC12V

Features: One-piece Molding / Modular Installation / Temperature Compensation, Integrated Industrial-grade Controller / Battery / Photovoltaic Surge Air Switch...

Fixed Bracket

Material: Hot-dip Galvanized

Set

1

Fixing Method: Pole Mounting

Hoop Specifications: 76/90/110/140/160, etc.
