Donglan 50W solar panel 182 series monocrystalline photovoltaic module monitoring street light application system

Online inquiry

Previous Next

Detailed content Specification parameter Product packaging

Electrical Parameters (Under Standard Test Conditions)
Maximum Power-Pmax(Wp)	400
Power Tolerance-Pmax(W)	0~+3
Operating Voltage-Vmpp(V)	30
Operating Current-Impp(A)	8.43
Open Circuit Voltage-Voc(V)	36.2
Short Circuit Current-Isc(A)	10.2
Module Efficiencynm(%)	14.2
Measured values under standard test conditions (Air MassAM1.5, Irradiance 1000W/㎡, Cell Temperature 25°C) Measurement Tolerance: ±3%
Mechanical Parameters
Cell Type	Monocrystalline
Number of Cells	60
Module Dimensions	164099035
Weight	23KG
Glass	3.2mm Ultra-white Textured Tempered Glass
Encapsulation Material	EVA
Backsheet	TPT White
Frame	30mm Aluminum Frame
Junction Box	Protection ClassIP67
Cable	Optional0.5-4mm² Copper Wire
Connector	OptionalMC4, Waterproof Terminal, Wire Clip

Temperature Ratings		Limit Parameters
NOCT (Nominal Operating Cell Temperature)	43℃		Operating Temperature	-40-+85℃
Temperature Coefficient of Maximum Power(Pmax)	-0.41%/℃		Maximum System Voltage	300VDC
Temperature Coefficient of Open Circuit Voltage(VOC)	-0.34%/℃		Maximum Fuse Rating	10A
Temperature Coefficient of Short Circuit Current(ISC)	0.06%/℃

Related products

40W Solar Power Supply System Laiyuan Changyao New Energy Solar Power Supply Monitoring Environmental Protection Water Conservancy Equipment Power Supply
350W solar panel monocrystalline photovoltaic module monitoring street light application system
Industrial and commercial energy storage products
System accessories products
Hardware bracket

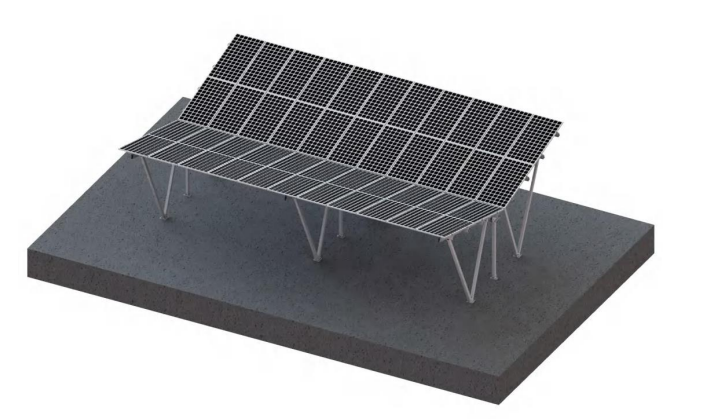

Solar mounting structure
